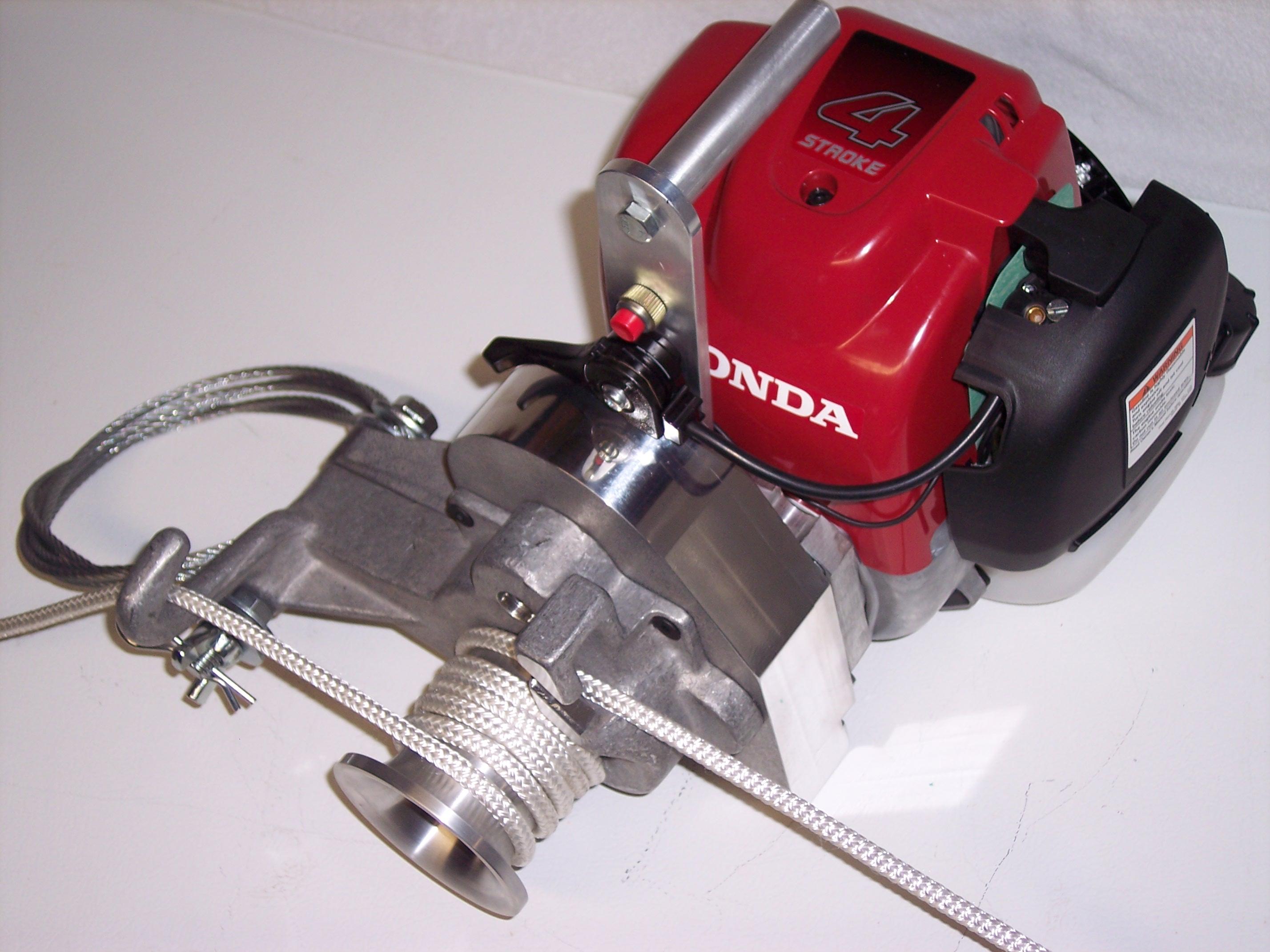

The SP-CW model is self propelled by a Honda 4 Stroke OHC engine,
with an approved spark arrestor & throttle control. It can pull up to 2000 pounds, straight line
pull, at 22 ft / min. It weighs in at 18 pounds and has a 5 year warranty on winch(1
year on the engine).
The CS-CW model attaches to a chain saw with an engine that is 3.5 cubic inches
or smaller. The saw must have an automatic oilier, 3/8" pitch drive sprocket and
a throttle lock to lock it at 2/3 throttle. The pull weight and pull speed vary
depending on the size of engine. This winch weighs 9 pounds plus the weight of
the saw and has a 5 Year warranty on the winch.

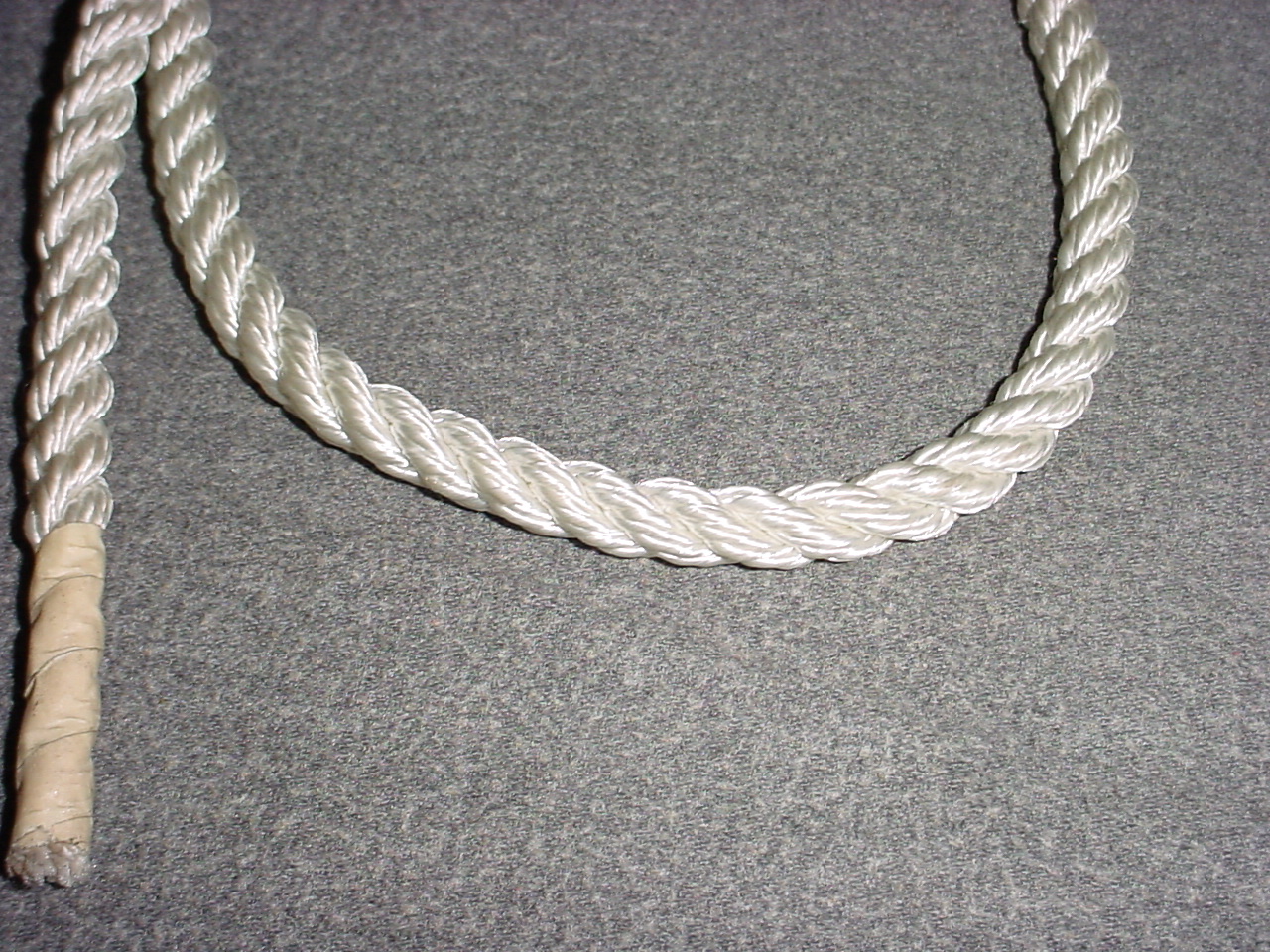

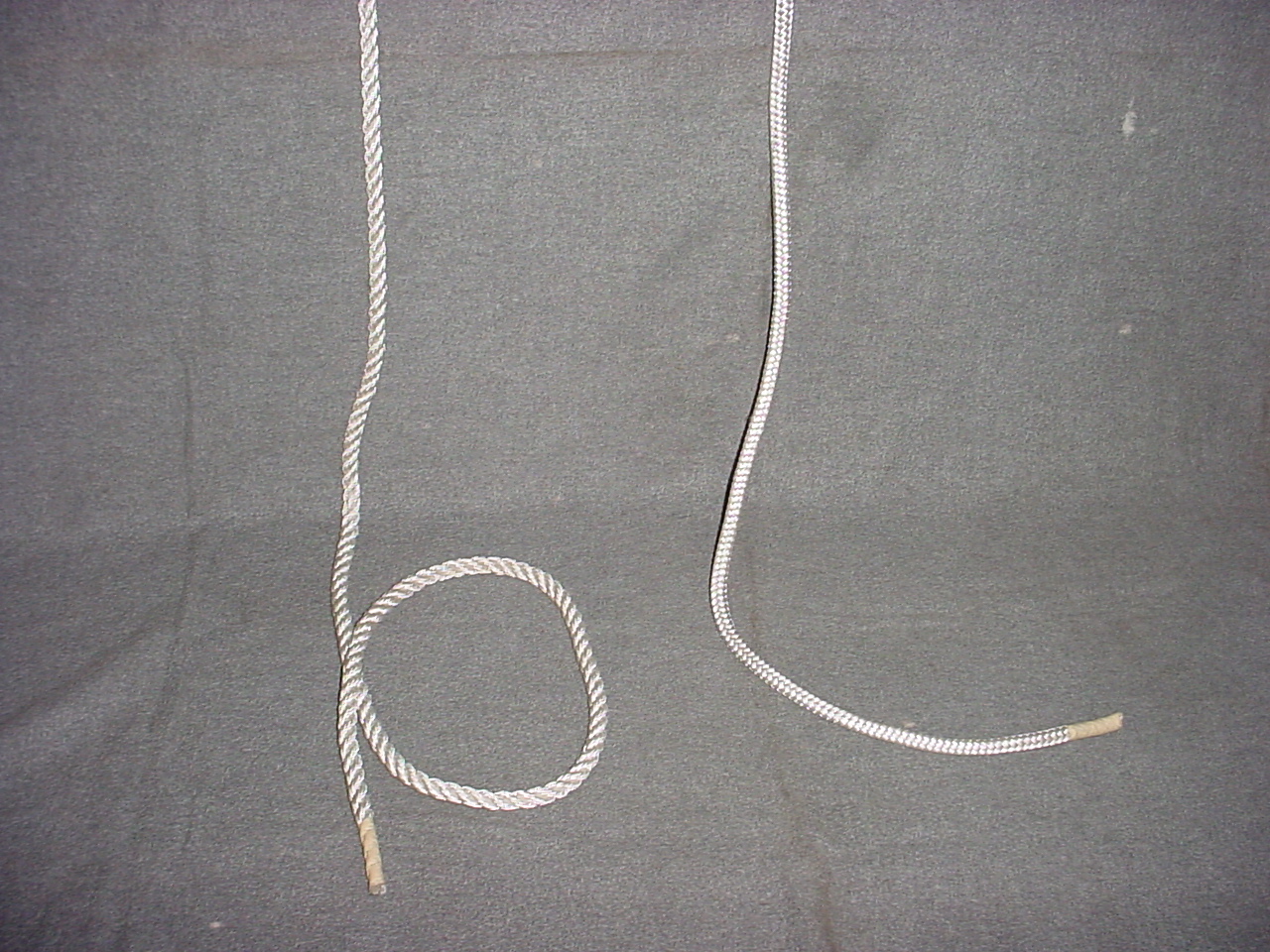

We handle two types of low stretch polyester rope. A 3/8" 3 strand twisted rope

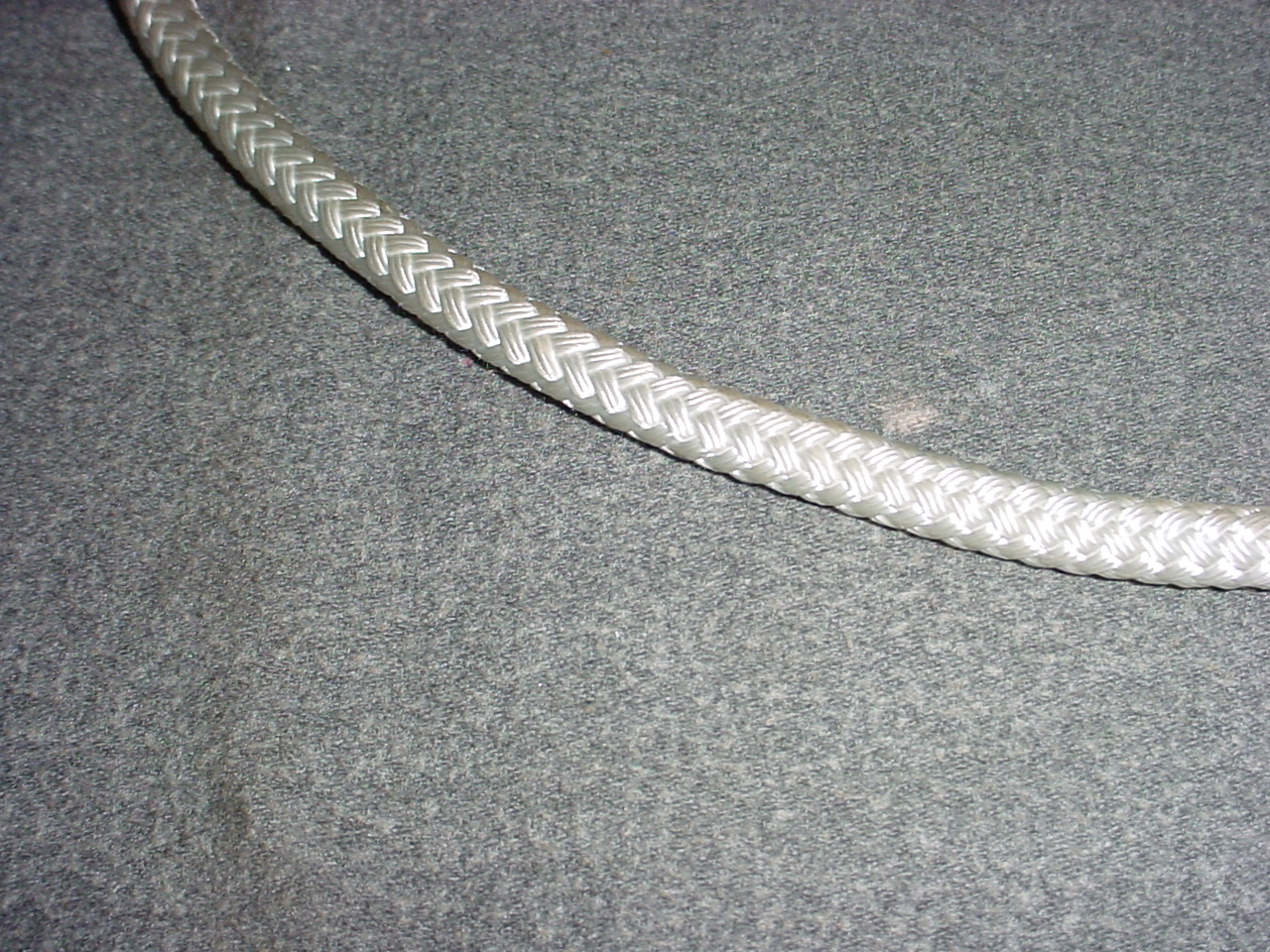

that has a 2,900 pound tensile strength and a 5/16" double braided that has a
4,200 pound tensile strength. We now have a 3/8" double braided rope (looks like
the 5/16" rope) that has a 5,600 pound tensile strength.
